Using C# to upload a file to AWS S3 Part 1: Creating and Securing your S3 Bucket

In this, the first of a two part post, I will show you how to upload a file to the Amazon Web Services (AWS) Simple Storage Service (S3 ) using a C# console application.

The goal of this post is to get a very simple example up and running with the minimum of friction. It not a deep dive into AWS S3 but a starting point which you can take in a direction of your choosing.

This post will focus on how to set up and secure your AWS S3 bucket.  Whilst the next will concentrate on the C# console app that will upload the file.


In order to build the demo the following items were used:

An AWS account. (I used the  12 months free tier)

Visual Studio 2017 Community Edition

AWS Toolkit for Visual Studio 2017

Creating a new AWS S3 bucket

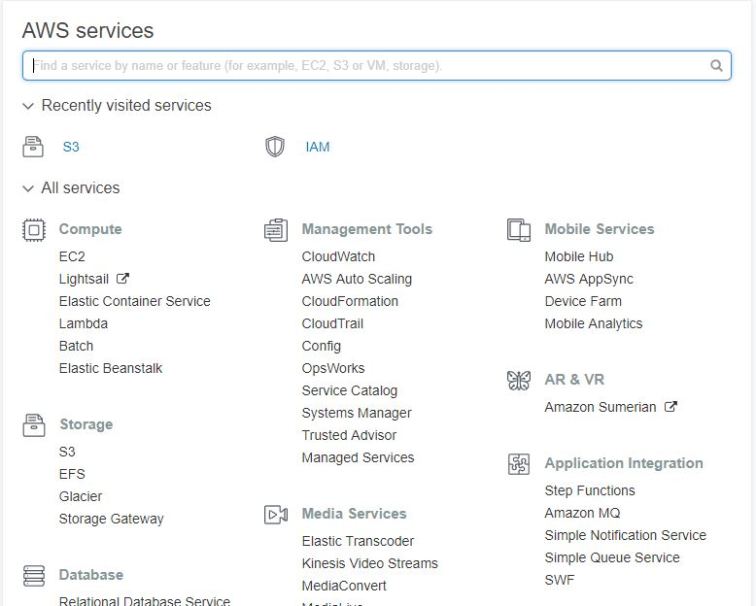

Log on to your AWS Management Console and select S3 (which can be found by using the search bar or looking under the Storage subheading)

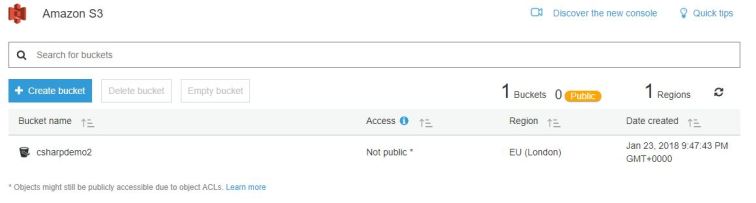

You should now be on the Amazon S3 page as shown below.aws2

This page give you the headline features about your existing buckets. In the screenshot you can see an existing bucket along with various attributes.

Click the blue Create bucket button and enter a name for your bucket, the region where you wish to store your files and then click next.

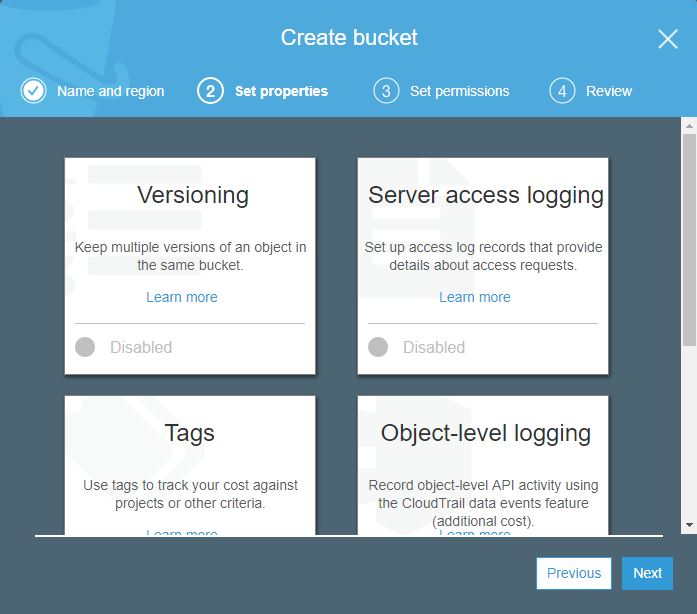

Click Next.  This screen allows you to set various bucket properties. For this demo, I will not be setting any so click Next to move onto step 3

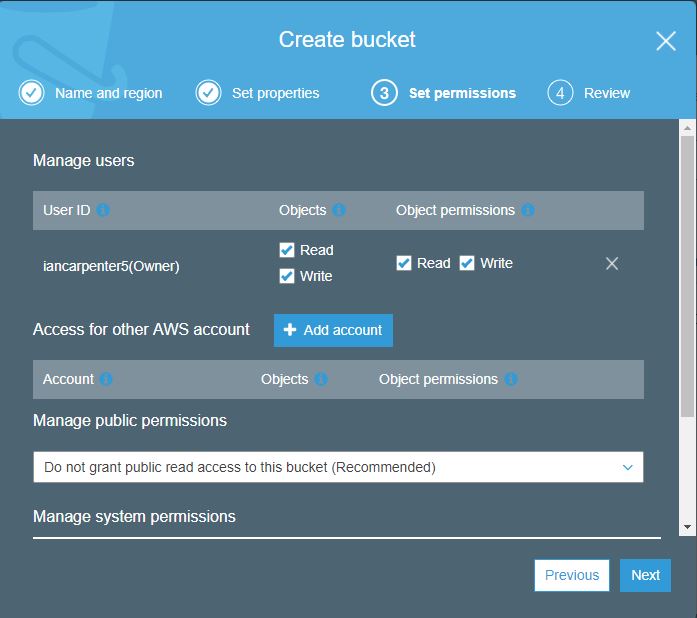

Leave the default permissions as they are and click Next to move on to the final page.

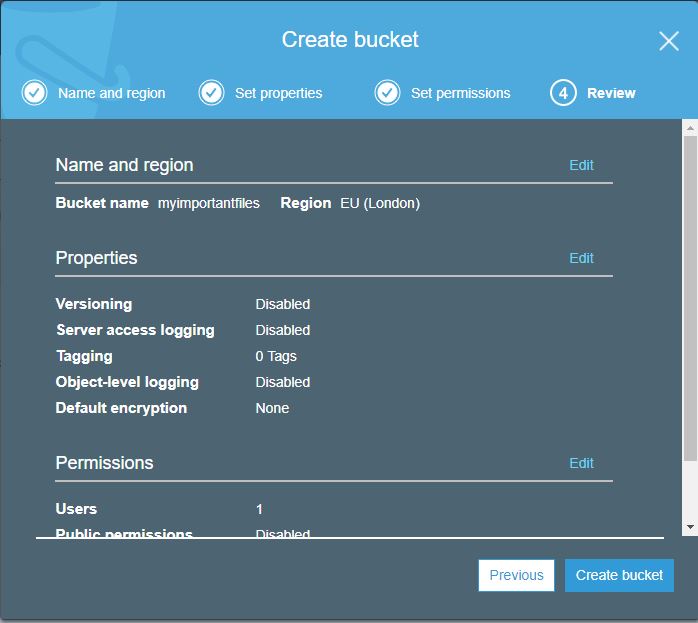

After reviewing the summary, click Create Bucketaws6

IAM User, Group and Policy

In order to access the S3 bucket from the .NET  application valid AWS credentials are required. Whilst you could use the AWS account holders credentials, Amazon recommends creating an IAM user in order to utilise the IAM users credentials when invoking the AWS API.

In this section of the post I will show you how to create a new IAM user and give it just enough privileges required to interact with our new S3 bucket. The information shown below has been distilled from the AWS documentation.

There are a large number of steps that follow and it is easy to get lost. My advice is to read through once before diving in. If you get stuck (or I have missed something) let me know in the comments.

Return to the AWS Home screen


Search for IAM, and after selecting users on the left hand side menu, click the blue Add User Button which will bring up the Set user details page.

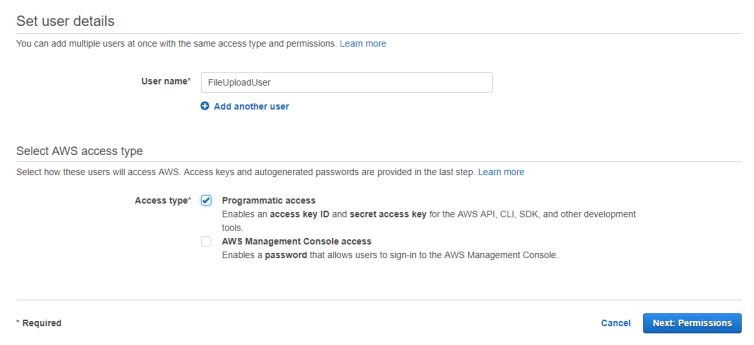

Give the user a name and the access type to Programmatic access only. There is no need for this user to be given access to the AWS console.  Click Next Permissions.

Rather than give permissions directly to the IAM user, Amazon recommends  that the user be placed in a group and manage permissions through policies that are attached to those groups. So lets do that now.

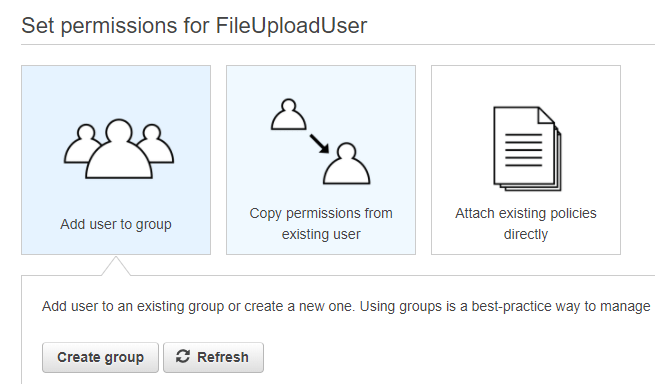

From the Set permissions page click on Create Group.


Give your Group a meaningful name.

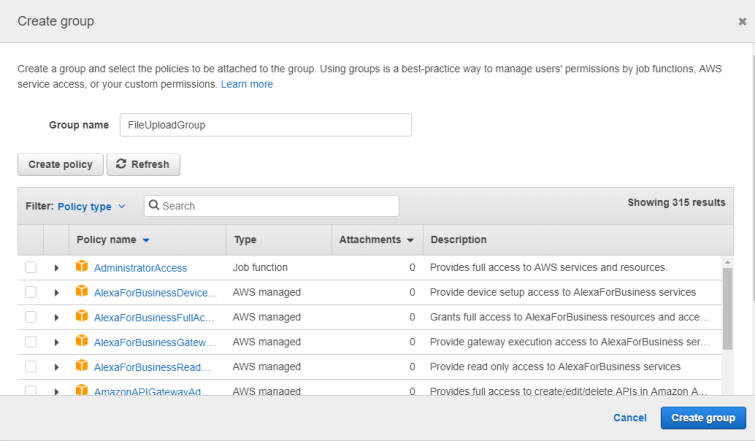

The next step is to attach one or more policies to the group.  Policies in this context defines the permissions for the group. The Create group page lists the available policies but unfortunately there isn’t an existing policy that can be used to ensure that the IAM user has only access to the new S3 bucket, so click on the Create policy button.

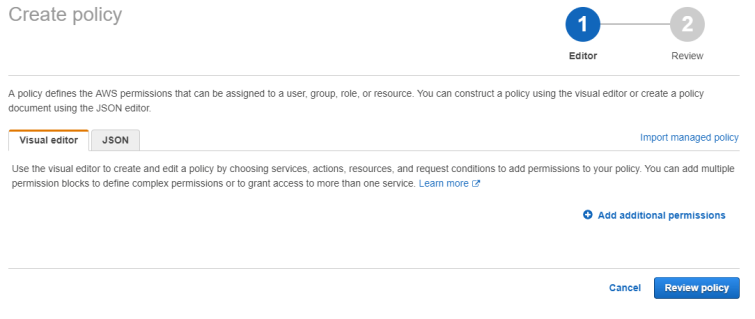

This opens in a new browser tab, the Create policy page


Click on the JSON tab and copy the following. Changing the bucket name as appropriate.  (The source of this JSON can be found here.)

  "Version": "2012-10-17",
  "Statement": [
    "Effect": "Allow",
    "Action": [
     "Resource": "arn:aws:s3:::*"
   "Effect": "Allow",
   "Action": [
   "Resource": "arn:aws:s3:::myimportantfiles"
   "Effect": "Allow",
   "Action": [
   "Resource": "arn:aws:s3:::myimportantfiles/*"

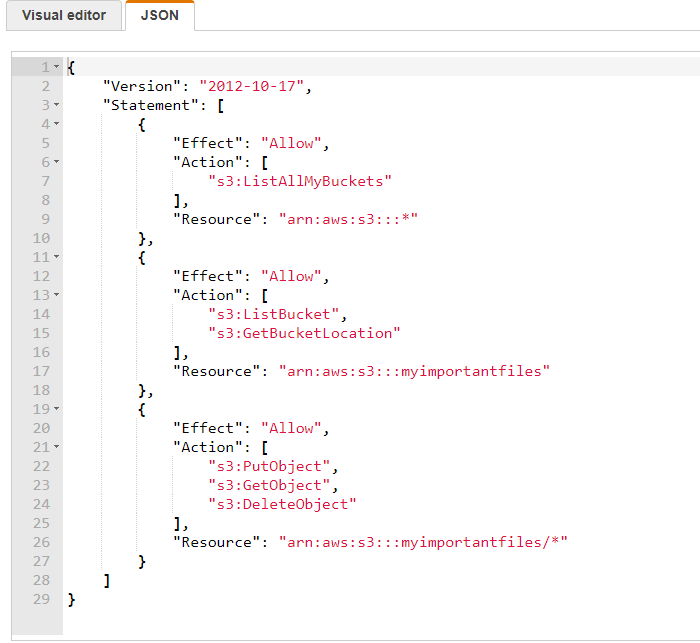

At this point the JSON editor should look like this

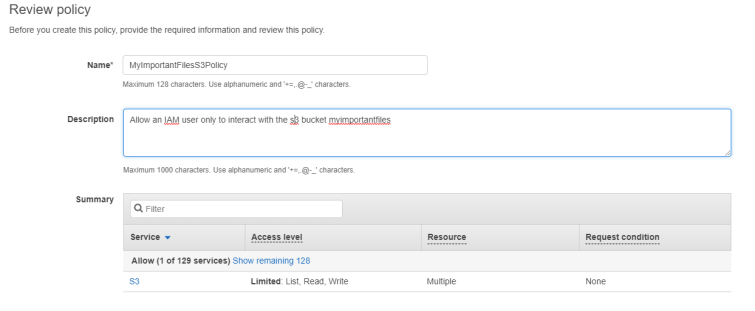

Once done click on the Review policy button. Give your policy a meaningful name and description and then click Create policy.


You will then receive confirmation that the policy has been created.

Now click the browser tab which displays the Create group page.

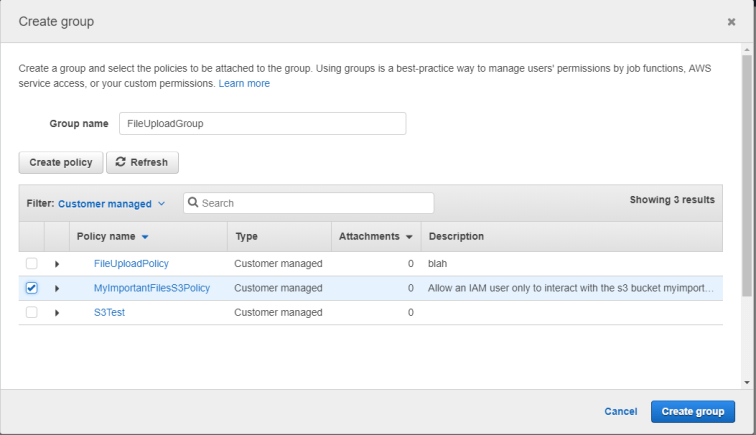

To find your new policy, change the filter (located left of the search bar) to “Customer managed” and press the refresh button (located next to the Create policy button). Once you have found the newly created policy, select it and press the Create group button.


You will now be returned to the Set Permissions Page; ensure the new group is selected and click Next: Review.

The final page is a review after which you can then click Create user.


Once the user has been created, you will see a confirmation along with a download .csv button. Click the button to download the credentials as these will be needed in our C# application discussed in the next post.



At this point it is worth getting a cup or glass of your favourite beverage and recapping what has been created:

  1. A new AWS S3 bucket.
  2. A new IAM user. This user has been placed in a group. The group has a policy attached that allows it to perform various operations only on the new bucket that has been created.
  3. A csv file containing the required access and secret keys have been downloaded.

On to part 2

With the S3 bucket and IAM user and the necessary privileges created and configured it is time to move on to part two which will create the .NET console application to upload a file into this bucket.
